Perfect cooling is not just a question of temperature.

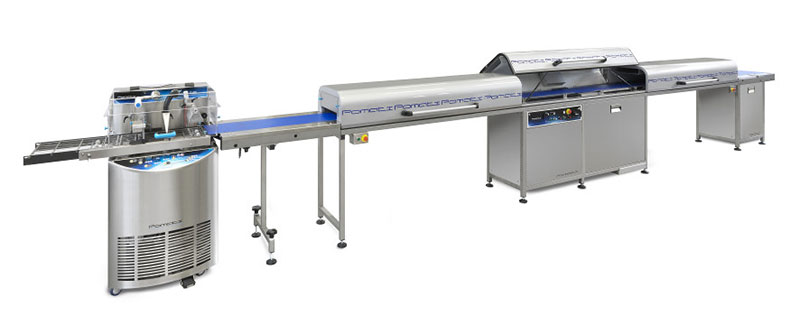

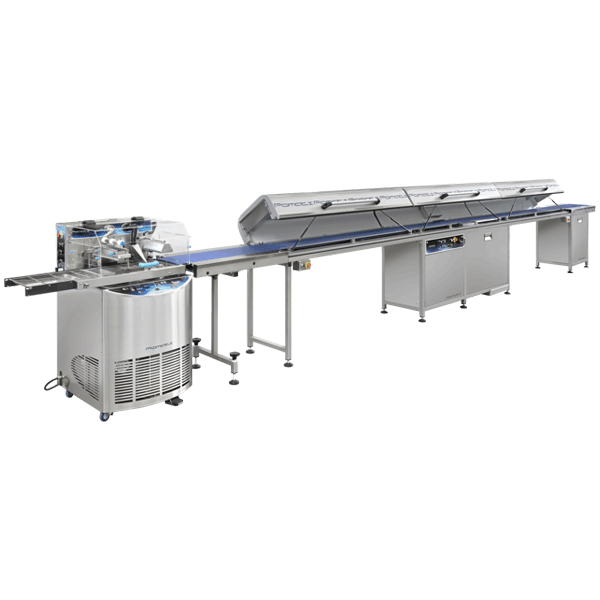

Expressly designed and built to cool products like chocolate Easter eggs, cookies, and covered sweets, POMATI’s COOLING TUNNEL is ideal for both artisanal and industrial factories. The warm product is delivered to the tunnel by a conveyor belt, where it is cooled by low-temperature forced air. The refrigeration system and the belt’s conveyor are activated by manually handling the control panel.

download the brochure request an estimate

Customized courses for chocolate processing
FOR INFO CONTACT US NOW

logo pomati open

Watch the video

TTUNNEL sx

Design your personalized line.

Create your line customized to your needs.

discover more
TTUNNEL sx

Design your personalized line.

Create your line customized to your needs.

discover more

Specifications

Technical features Structure Entirely made in AISI 304 stainless steel – Coating in thermoinsulated printed material.
  Conveyor Belt
Conveyor belt in food-grade, crushproof polyurethane – Exit conveyor belt with peeler.

Mechanical features
Self-aligning rollers with wander-free mechanism — Automatic, heated gas defrosting.

Refrigeration unit
Cooling with closed loop air circulation – Refrigerating unit with forced-air cooling system.

Dimensions
Product clearance height 130/290 mm – Conveyor belt width 180/250/320 mm – Length of cooling unit, 4 -12 m – Size 570 x 6 – 14 m x h 1270 mm.

Power
400 Volts –Hz 50–KW 2,4 Tri-phase, 5 poles (customized voltages upon request).
Available accessories Tunnel Lighted inspection window (see details)
  Output sensor for product stop (see details)

Specifications

Technical features

  • Structure: Entirely made in AISI 304 stainless steel – Coating in thermoinsulated printed material
  • Conveyor Belt: Conveyor belt in food-grade, crushproof polyurethane – Exit conveyor belt with peeler
  • Mechanical features: Self-aligning rollers with wander-free mechanism — Automatic, heated gas defrosting
  • Refrigeration unit: Cooling with closed loop air circulation – Refrigerating unit with forced-air cooling system
  • Dimensions: Product clearance height 130/290 mm – Conveyor belt width 180/250/320 mm – Length of cooling unit, 4 -12 m – Size 570 x 6 – 14 m x h 1270 mm
  • Power: 400 Volts –Hz 50–KW 2,4 Tri-phase, 5 poles (customized voltages upon request)

Available accessories
