POMATI_CLS6_1

Enrobing Belt
CSL 600mm

COMPATIBILITY

ico power

CONSUPTION

1,6 kw

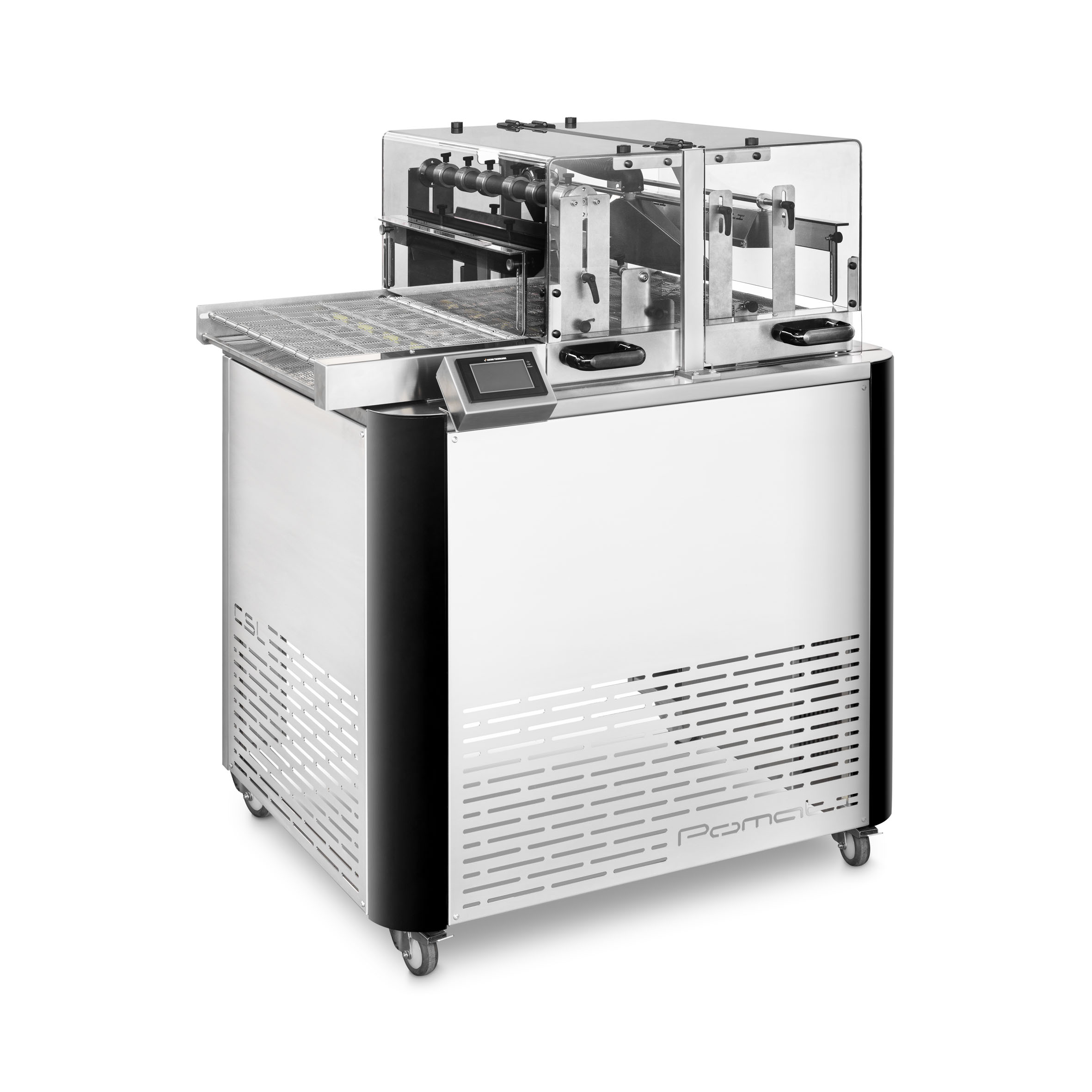

Enrobing Belt CSL 600mm

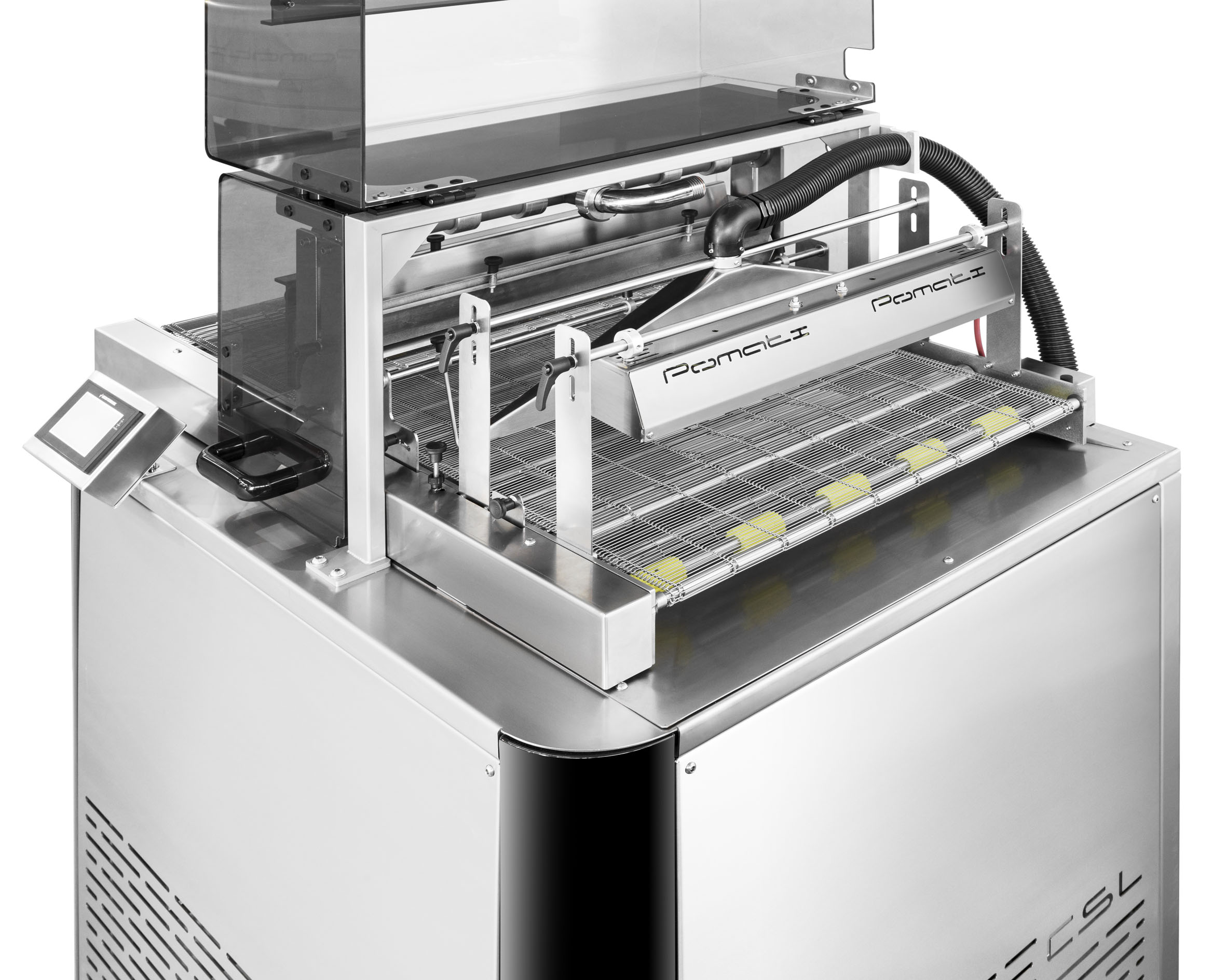

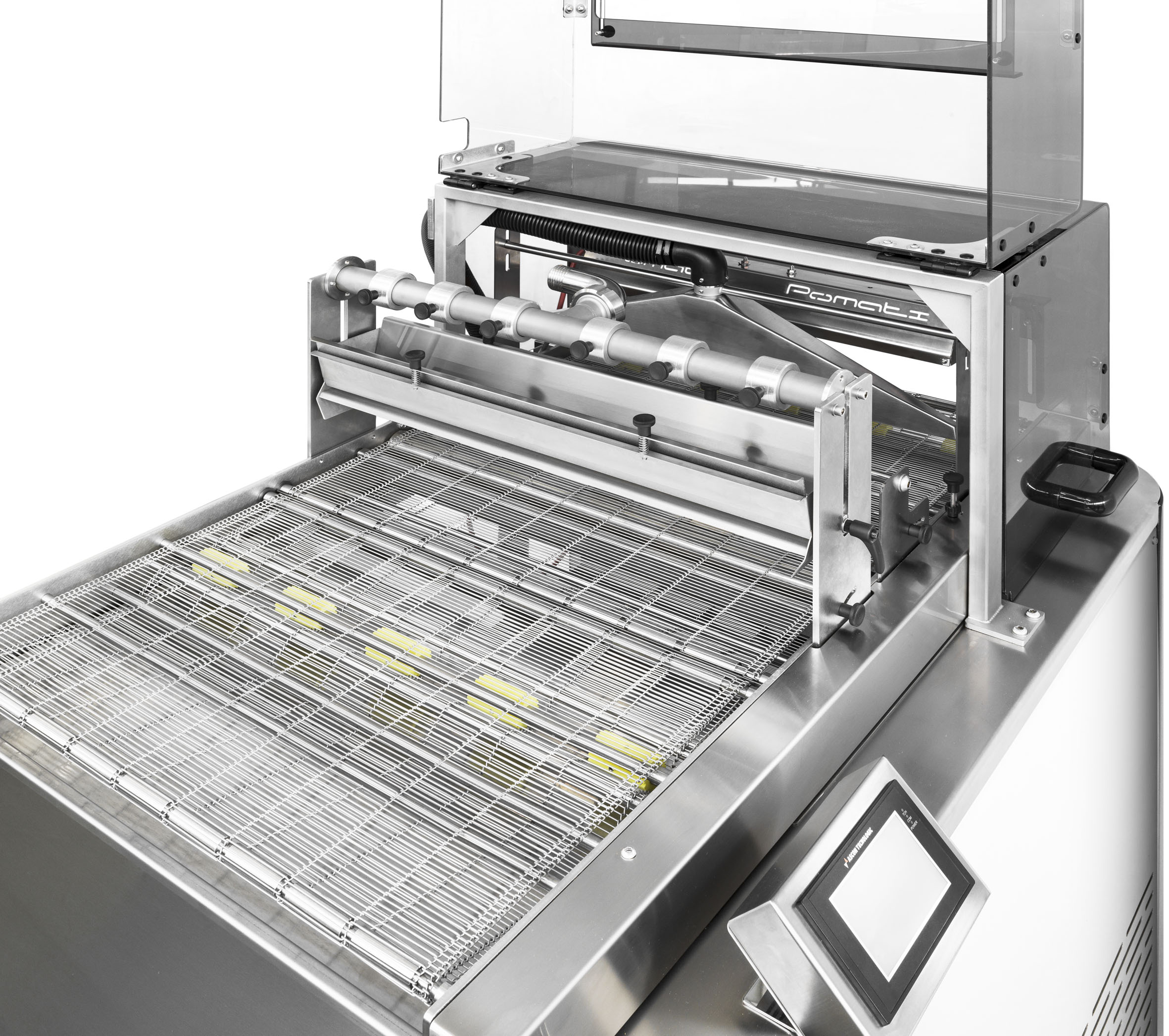

CSL6, newly designed enrobing belt, composed of a stainless steel supporting structure that supports the 600mm work belt, the steel mesh is divided into two parts, the product loading area and the covering area, possibility of processing both with single and double ply, the belt is equipped with 3 heating elements to heat the work area evenly,  Assisted by a cover that can be opened in two separate areas to allow adjustments of the components.

 The load-bearing structure is equipped with a special surface heated by energy-efficient heating elements to facilitate the return of the product to the tank. The work area is easily separated for easy cleaning

The trolley is equipped with a touch screen panel for the control of the belt, the blower, the heating elements, the heating lamps and has the possibility of remotely controlling the main functions of the SL80 tempering machine

The CSL6 enrobing belt can be combined with SL80 tempering machine and 600mm cooling tunnel

Customized courses for chocolate processing
FOR INFO CONTACT US NOW

logo pomati open

Technical Features

  • Loading net separated from the work area to ensure cleanliness
  • Covering mesh with product vibration zone
  • Double-ply hopper for full and partial coatings
  • Variable speed fan with inverter
  • Height-adjustable and tilting blower
  • Motorized tail cutter with heated reversing
  • Bottom and side cover pool with sinkers
  • Product passage height 150 mm
  • Variable speed 0-2 mt/min
  • Working room heating lamps
  • Plexiglass cover
  • Touch-screen control panel
  • Remote control of the tempering machine
  • Voltage: Volt 200-240 – Hz 50-60 – KW 1.6 Single-phase
